Common Mistakes When Removing Broken Bolts and How to Fix Them – Optimized with Professional Broken Bolt Extractors
Removing a broken bolt is one of the "toughest" challenges for any mechanic working on cars, motorcycles, or machinery. A stubborn, rusted bolt fragment stuck inside an engine block can halt the entire work progress. Faced with this situation, many people make basic errors due to impatience or lack of equipment, leading to the complete damage of the original thread.
However, instead of using a professional broken bolt extractor set and adhering to the correct technical procedure, many resort to chisels and hammers for brute force or improper drilling. The consequences are a brittle extractor bit breaking inside, a drilled hole damaging the engine block casing, turning a minor incident into a costly disaster. Identifying these common mistakes will help you avoid risks and save time and effort.
Join Hanoi Ha Thanh Company Limited (HCMC Branch) as we delve into the common mistakes when removing broken bolts and the most detailed solutions. Through this article, you will master the skill of removing stuck bolts smoothly and absolutely safely for all valuable machine parts.
Contact us now: 0902 8888 02
Mistakes in Preparation Before Using High-End Broken Bolt Extractors
Skipping Penetrating Oil and Rust Softeners
This is the most common mistake born from haste. Broken bolts are often caused by oxidation (rust) forming a rigid bond between the bolt threads and the engine block. If you skip applying rust penetrant (like RP7, WD-40) and immediately apply turning force, the required torque will exceed the extractor's endurance, leading to tool breakage.
-
Solution: Generously spray with penetrating oil and let it soak for 15-30 minutes. You can also lightly heat the surrounding area with a torch to expand the metal, breaking the internal rust bonds before applying mechanical force.
Off-Center Pilot Hole Drilling and Incorrect Size Selection
Drilling a pilot hole is the step to create a path for the extractor. A common mistake is mechanics not using a center punch to mark the center, causing the drill bit to slip on the smooth surface of the broken bolt's cut face. Furthermore, choosing a drill bit that is too large thins the bolt's wall, causing the bolt to expand when the extractor is driven in, making it even more stuck in the engine block.
-
Solution: Always use a hammer and center punch to create a dimple precisely in the center of the bolt. Select a drill bit with a diameter equal to 1/2 of the bolt's shaft diameter. Drill at a slow speed, keeping the drill perfectly perpendicular (90 degrees).
Contact us now: 0902 8888 02
Consequences of Not Using Genuine Broken Bolt Extractors
Brittle Extractor Bits Breaking and Getting Stuck in the Bolt Core
Buying cheap, unbranded tools is a fatal mistake. Impure steel is highly brittle. When you apply force, a substandard extractor bit will shatter, and the broken piece will lodge deep inside the pilot hole. The hardened steel of the extractor bit is so tough that a regular drill can't penetrate it. Hanoi Ha Thanh Company Limited (HCMC Branch) always advises customers to use genuine broken bolt extractor sets made from S2 or HSS steel to prevent this dangerous snapping.
Using Impact Wrenches or Cordless Drills to Turn the Extractor
Many people think using a cordless drill with an extractor bit will speed things up. However, drills generate sudden, impactful force. The rapid change in rotational acceleration will instantly snap the extractor bit.
-

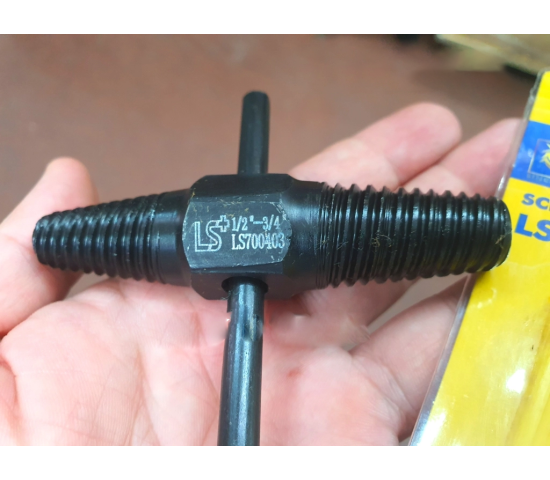

Solution: Only use a T-handle wrench, a spanner, or locking pliers to grip the square end of the extractor bit. Turn slowly counter-clockwise by hand to feel the bolt's resistance, adjusting the pressure safely.
Contact us now: 0902 8888 02
How to Fix and Operate Correctly with HSS Steel Broken Bolt Extractors
Choose the Right Corresponding Extractor Size

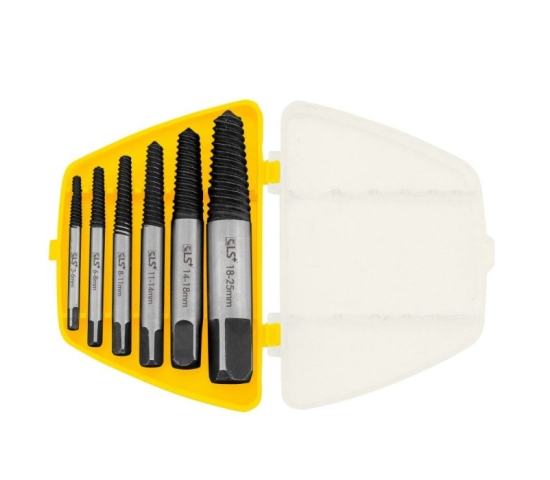

Attempting to force a too-small extractor into an oversized pilot hole will scratch the hole's threads, preventing it from gripping the bolt. Choosing a good HSS steel broken bolt extractor set will come with a size guide on the packaging. Simply match the diameter of the broken bolt, select the corresponding drill bit, and use the indicated extractor size for the job. This precise fit creates maximum friction to extract the bolt.
What to Do When the Bolt is Still "Stubborn" and Won't Budge
If you've applied significant force and the bolt hasn't moved, DO NOT FORCE IT FURTHER. Excessive force will break the tool. Instead, release the tension, tap the top of the extractor bit lightly with a hammer a few times to create shockwaves that transmit down to the threads. Reapply RP7, let it soak for another 15 minutes, then use a lever to slowly turn back and forth (forward then reverse) to gradually break down the rust deposits.
Contact us now: 0902 8888 02
Invest in Affordable Broken Bolt Extractors at Ha Thanh Company
Good tools determine 80% of the success rate in difficult repairs. Hanoi Ha Thanh Company Limited (HCMC Branch) is proud to offer mechanics a range of affordable broken bolt extractor sets with guaranteed absolute precision CNC machining. The reverse spiral flutes are expertly machined to grip the bolt body firmly from the very first turns.
At Ha Thanh, you don't just buy tools; you buy peace of mind. Our team of experts is always ready to share tips, analyze common mistakes when removing broken bolts, and provide practical workshop solutions. All products come with a transparent return policy for manufacturer defects.
Contact Hanoi Ha Thanh Company Limited (HCMC Branch) today to acquire a professional broken bolt extractor set and banish the nightmare of stuck bolts once and for all!
Contact us now: 0902 8888 02
10 Frequently Asked Questions About Mistakes When Using Heavy-Duty Broken Bolt Extractors
1. What is the most severe mistake when trying to remove a broken bolt at home?
Answer: The most severe mistake is improper centering, drilling haphazardly, causing damage to the outer edge of the bolt and ruining the original aluminum threads of the engine block.
2. Can I use heat to glow the bolt red before extracting?
Answer: Yes, but only use a gas torch for localized heating and be extremely careful not to melt rubber gaskets or nearby plastic components and electrical wires.
3. Does drilling the pilot hole too shallow have any impact?
Answer: If the pilot hole is too shallow, the extractor won't have enough surface area to bite into the bolt's body. When applying strong torque, it will slip and damage the extractor tip.
4. Why do HSS steel extractor bits break?
Answer: HSS steel is very hard but also brittle. If you use a drill to turn (causing shock load) or pry sideways instead of turning straight, the bit will break.
5. What is the solution if an extractor bit breaks and gets stuck inside?
Answer: It is almost impossible to drill through. You can only use a tiny grinding bit or, as a last resort, take the engine block to a facility that uses Electrical Discharge Machining (EDM) to remove it.
6. Can I DIY an extractor bit from a damaged drill bit?
Answer: Absolutely not. Extractor bits must have a "reverse thread" (left-hand thread) design to firmly grip the bolt while applying extracting force. Homemade tools without this feature will be useless.
7. Is it necessary to tap the extractor bit with a hammer before turning?
Answer: Yes. Lightly tap the top of the extractor bit 2-3 times with a hammer to ensure the spiral flutes deeply and securely engage the pilot hole walls, preventing slippage when you start turning the lever.
8. Why can't this extractor set be used for stripped threads?
Answer: If the bolt only has stripped threads (spinning freely without coming out or going in), the extractor will not work. Extractors are only used when the bolt body is stuck fast and the head is broken off, leaving no surface for a wrench to grip.
9. Does Ha Thanh Company provide guidance on drilling pilot holes?
Answer: Yes, when you purchase a heavy-duty broken bolt extractor set from Hanoi Ha Thanh Company Limited (HCMC Branch), you will receive a clear chart showing the corresponding drill bit sizes for each extractor size.
10. What is the procedure if the broken bolt is located in a very deep recess?
Answer: If it's too deep, you will need an extra-long pilot drill bit and a long-handled T-tap wrench to connect to the extractor, ensuring you can turn it without obstruction from surrounding edges.
